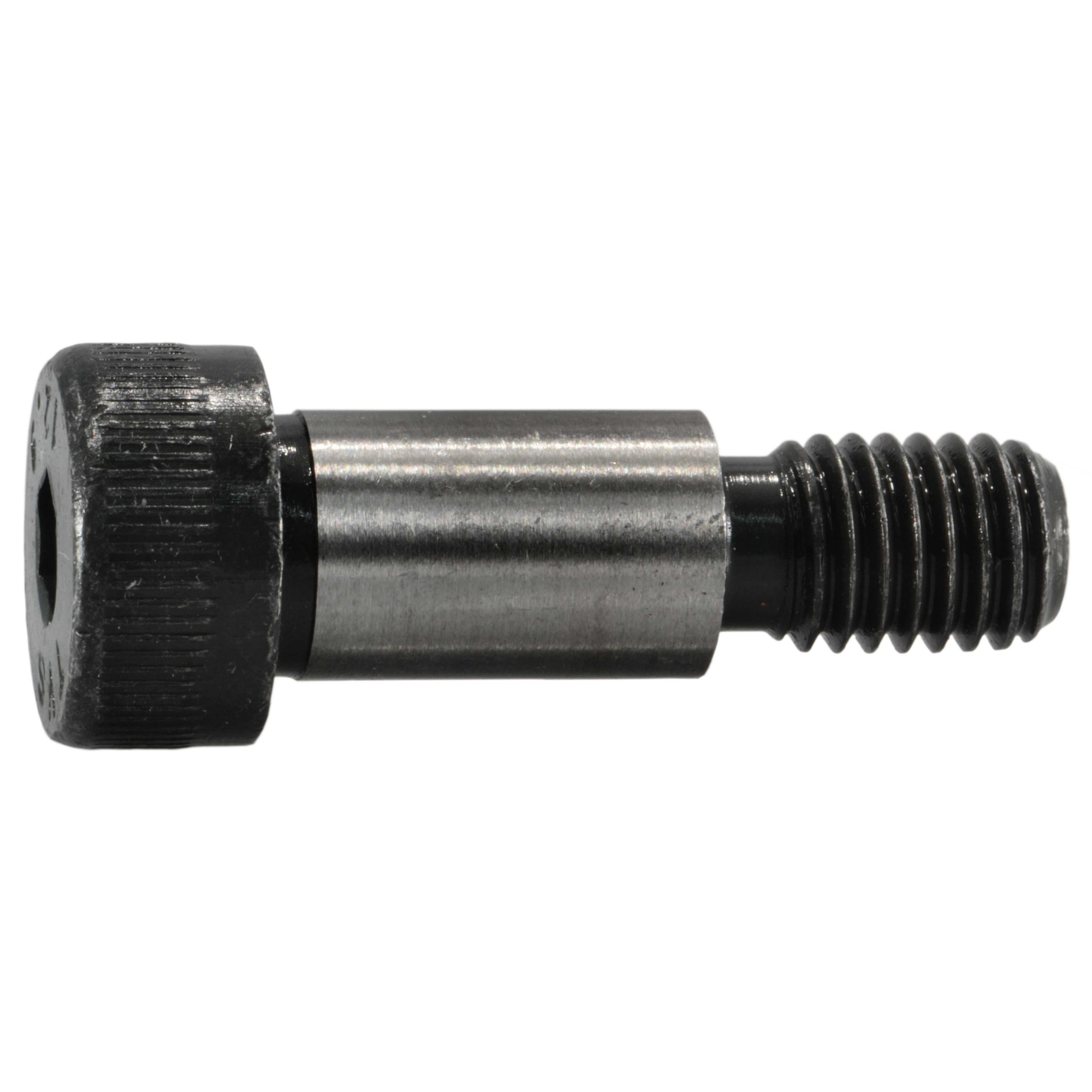

10mm-1.5 x 12mm x 45mm x 20mm Plain Class 12.9 Steel Coarse Thread Hex Socket Head Shoulder Screws

Diameter: 10mm
Shoulder Length: 20mm
Overall Length: 45mm
Material: Steel
Finish: Plain
Head Style: Socket (6mm Hex)
Thread Size: 1.5mm (Coarse)
Thread Length: 16mm
Hardness: Class 12.9
Type: Shoulder Bolt
Specifications: ISO 7379

Box of 3.

A shoulder screw differs from machine screws in that the shank is ground to a precise diameter, known as the shoulder, and the threaded portion is smaller in diameter than the shoulder. Shoulder bolt specifications call out the shoulder diameter, shoulder length, and threaded diameter; the threaded length is fixed, based on the threaded diameter, and usually quite short. It is usually used for revolving joints in mechanisms and linkages; when used as a guide for the stripper plate in a die set its called a stripper bolt.
